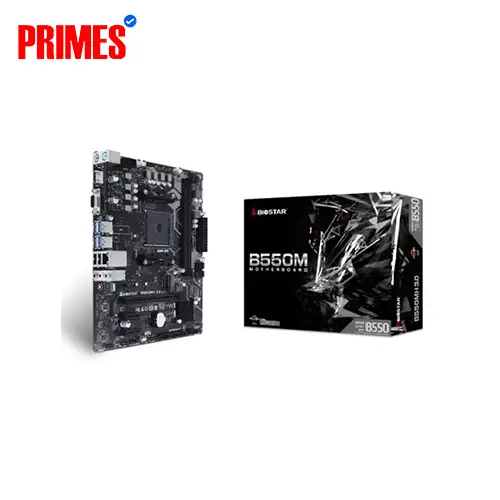

MOTHERBOARD BIOSTAR MICRO ATX B550 MH
Price: 8,300৳
Stock: In stock
Product Code: #2084
Brand: Biostar
Key Features:
Model: B550MH
Supported CPU: Ryzen 3rd Gen and 4th Gen processors
Supported RAM: 2x DIMM, DDR4 4933+(OC)
Graphics Output: 1 x HDMI, 1 x VGA Port
Features: 1 x M.2 Slot, Realtek RTL8111H
Payment Options
Selected: Cash
Specification
| General | |
| Brand | BIOSTAR |
| Chipset | AMD B550 |
| Form Factor | Micro ATX Form Factor Dimension: 24.4 cm x 20.8 cm ( W x L ) |
| Product Code | 26470 |
| Supported Cpu | Socket AM4 support AMD 3 rd Gen Ryzen (Matisse/ Renoir) processors and Ryzen 4 th Gen (Vermeer) processors; Support for future AMD Ryzen processors with BIOS update |
| Software | |
| Bundled Software | BullGuard |
| Audio | |
| Codec | ALC887; 7.1 Channels, High Definition Audio, Hi-Fi (Front); 3 x Audio Jack |
| Internal I/O Ports | 1 x Front Audio Header |
| Os Support | |
| Compatible | Windows 10 / 11 |
| Durability | |
| Features | Supports Super LAN Surge Protection |
| Connectivity | |
| Hdmi | 1 x HDMI Port |
| Internal I/O Ports | 1 x 8-Pin Power Connector; 1 x 24-Pin Power Connector; 1 x CPU Fan Connector; 1 x System Fan Connector; 1 x Front Panel Header; 1 x Clear CMOS Header; 1 x Internal Stereo Speaker Header; 1 x COM Port Header |
| Vga (S) | 1 x VGA Port |
| Storage | |
| Internal I/O Ports | 4 x SATA III (6.0 Gb/s) Connectors |
| Supported Storage | 4 x SATA III Connector (6 Gb/s) : Supports AHCI & RAID 0, 1, 10; 1 x M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD module; Supports PCIe 4.0 x 4 (64 Gb/s)/ 3.0 x 4 (32 Gb/s); Supports SATA III (6.0 Gb/s) SSD; * M.2 (M Key) Socket (M2_PCIe-SATA1): The bandwidth is depended on CPU.; Supports PCIe 4.0 x 4 (64 Gb/s) speed, which depends only on Ryzen 3 rd Gen Matisse. |
| Usb | |
| Internal I/O Ports | 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports); 2 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) |
| Ports | 8 x USB 3.2 (Gen1) ports (4 on rear I/Os and 4 via internal headers); 6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers) |
| Cooling | |
| Internal I/O Ports | 1 x CPU Fan Connector; 1 x System Fan Connector |
| Networking | |
| Lan Port (S) | Realtek RTL8111 H; 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability; Supports Super LAN Surge Protection |
| Memory | |
| Maximum Memory | Up to 64 GB |
| Slots | 2 x DIMM |
| Supported Memory | 4 th Gen AMD Ryzen Processors (Vermeer CPUs/ Future APUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133; 3 rd Gen AMD Ryzen Processors (Matisse CPUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133; 3 rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs): Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133; Each DIMM supports non-ECC and ECC Un-buffered 8/ 16/ 32 GB DDR4 module |
| Type | DDR4 |
| Expansion Slots | |
| Pci | 1 x PCIe 4.0/ 3.0 x 16 Slot: Supports PCIe 4.0 x 16 mode with AMD Ryzen processors. (Matisse only); Supports PCIe 3.0 x 16 mode AMD Ryzen with Radeon Vega Graphics processors. (Renoir only); 2 x PCIe 3.0 x 1 Slot |
| Cpu Support | |
| Processors | Socket AM4 support AMD 3 rd Gen Ryzen (Matisse/ Renoir) processors and Ryzen 4 th Gen (Vermeer) processors; Support for future AMD Ryzen processors with BIOS update |
| Warranty Information | |
| Warranty | 3 Years |
Description
The Biostar B550MH is a micro ATX motherboard designed for use with the latest AMD Ryzen 3rd Gen and 4th Gen processors. It features the AM4 socket and supports DDR4 memory, providing users with high-speed performance and support for the latest hardware. The B550MH motherboard has a variety of features that make it perfect for both gaming and workstation builds. It has a robust power delivery system that provides stable and efficient power to the CPU, and it also features a high-quality audio subsystem that provides clear and immersive sound. The BIOSTAR B550MH also has a wide range of connectivity options, including support for PCIe 4.0, USB 3.2, and SATA III. Additionally, it has a high-speed Ethernet port and support for wireless connectivity, which makes it easy to connect to the internet and other devices. The BIOSTAR B550MH motherboard also has a range of advanced features that make it a great choice for overclockers and enthusiasts, such as the ability to adjust the CPU voltage and monitor the temperature of the system.
Best MOTHERBOARD BIOSTAR MICRO ATX B550 MH price in BD
MOTHERBOARD BIOSTAR MICRO ATX B550 MH price in Bangladesh starts from ৳8,300. Price may vary based on configuration and availability. Order from the Primes Computers website or visit our showrooms.
