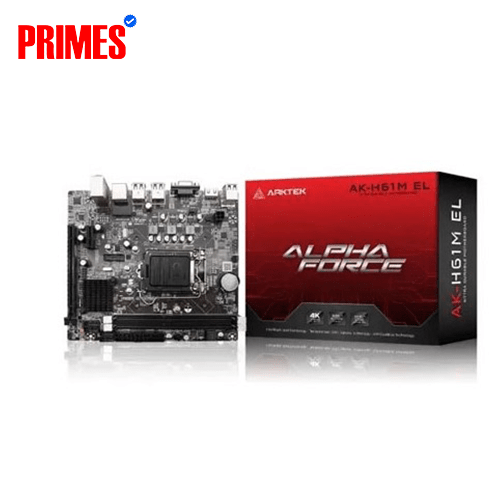

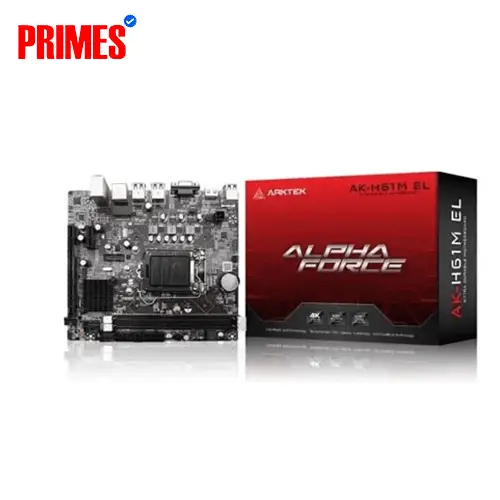

ARKTEK AK-H61M EL 3rd Gen Micro-ATX Motherboard
Price: 4,200৳
Stock: In stock
Product Code: #2069
Brand: Arktek
Key Features:
Model: AK-H61M EL
Supported CPU: Intel Socket 1155 for Core i7/ i5/ i3/Pentium/Celeron
Supported RAM: 2x DIMM, DDR3 1600/ 1333/1066MHz
Graphics Output: 1 x HDMI, 1 x VGA Port
Features: Realtek 8105E/8111E 100/1000 Mbps
Payment Options
Selected: Cash
Specification
| Basic Information | |
| Audio | Realtek 6 Channel Audio Codec |
| Chipset | Intel H61 Chipset |
| Form Factor | Micro-ATX (18.5 x 16.8 cm) |
| Supported Cpu | Intel Socket 1155 for Intel Core i7/Core i5/Core i3/Pentium/Celeron Processors |
| Connector & Ports | |
| Audio | 3 x Audio jack |
| Hdmi | 1 x HDMI port |
| Lan Port (S) | Realtek 8105 E/8111 E 100/1000 Mbps (Optional) |
| Supported Storage | 4 x SATA port |
| Usb (S) | 6 x USB 2.0 port |
| Vga (S) | 1 x VGA port |
| Graphics | |
| Graphics | Intel Graphics Media Accelerator X4500 HD |
| Expansion Slots | |
| Pci | 1 x PCI Express x16 slot 1 x PCI E x1 slot |
| Memory | |
| Slots | 2 x Memory Slots |
| Supported Memory | 1600/ 1333/1066 memory |
| Type | DDR3 |
| Warranty Information | |
| Warranty | 2 Year |
Description
The ARKTEK AK-H61M EL 3rd Gen Micro-ATX Motherboard is designed to support Intel Core i7/Core i5/Core i3/Pentium/Celeron processors using an Intel Socket 1155. It features the Intel H61 chipset and comes with integrated Intel Graphics Media Accelerator X4500 HD for on-board graphics capabilities. The motherboard supports DDR3 memory at speeds of 1600/1333/1066, with two DIMM slots available for memory expansion. It offers Realtek 6 Channel Audio Codec for audio output and Realtek 8105E/8111E 100/1000 Mbps LAN connectivity (optional). The AK-H61M EL provides four SATA ports for connecting hard drives or solid-state drives. The back panel I/O ports include one VGA port, one HDMI port, six USB 2.0 ports, one LAN jack, and three audio jacks. It offers one PCI Express x16 slot for expansion cards and one PCI Express x1 slot for additional peripherals.
Best ARKTEK AK-H61M EL 3rd Gen Micro-ATX Motherboard price in BD
ARKTEK AK-H61M EL 3rd Gen Micro-ATX Motherboard price in Bangladesh starts from ৳4,200. Price may vary based on configuration and availability. Order from the Primes Computers website or visit our showrooms.
