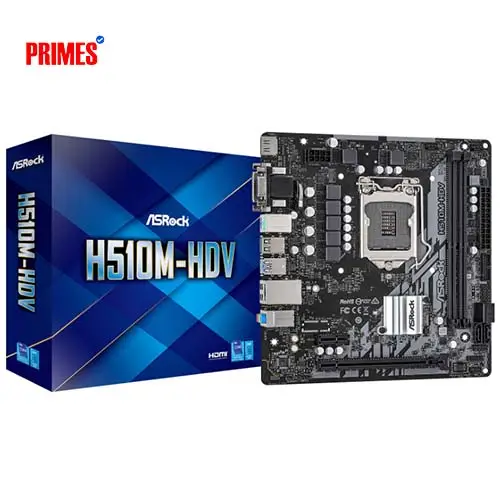

ASRock H510M-HDV/M.2 10th and 11th Gen Micro ATX Motherboard
Price: To be announced
Stock: Out of stock
Product Code: #121
Brand: Asrock
Key Features:
Supports 10th & 11th Gen Intel Core Processors
DDR4 up to 3200MHz (OC)
Ultra M.2 PCIe Gen3 x4/SATA3 6Gb/s
Triple Display Outputs (HDMI, DVI-D, D-Sub)
Base Frequency Boost (BFB) Tech
Payment Options
Selected: Cash
Specification
| Special Features | |
| Bfb Technology | Base Frequency Boost supported |
| Software | ASRock A-Tuning, XFast LAN, APP Shop |
| Surge Protection | Yes |
| Ultra M.2 | Yes |
| Audio | |
| Channels | 7.1 CH HD Audio |
| Codec | Realtek ALC897 |
| Basic Information | |
| Chipset | Intel H510 |
| Form Factor | Micro ATX (22.6 cm x 18.8 cm) |
| Supported Cpu | 10 th & 11 th Gen Intel Core Processors (LGA1200) |
| Graphics | |
| D-Sub Max Resolution | 1920x1200 @ 60 Hz |
| Dvi-D Max Resolution | 1920x1200 @ 60 Hz |
| Hdmi Max Resolution | 4096x2160 @ 60 Hz |
| Outputs | HDMI, DVI-D, D-Sub |
| Triple Monitor Support | Yes |
| Internal I/O | |
| Fan Headers | 1 x CPU, 1 x Chassis, 1 x Chassis/Water Pump (Smart Fan) |
| Other Ports | COM header, speaker, chassis intrusion, audio, RGB, TPM |
| Power | 1 x 24-pin ATX, 1 x 8-pin 12 V |
| Connectivity | |
| Lan | Gigabit LAN (Intel I219 V) |
| Usb (Internal) | 1 x USB 2.0 Header, 1 x USB 3.2 Gen1 Header |
| Usb (Rear) | 4 x USB 2.0, 2 x USB 3.2 Gen1 |
| Storage | |
| M.2 Slot | 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3, 2260/2280) |
| Sata Ports | 4 x SATA3 6 Gb/s |
| Memory | |
| Maximum Memory | 64 GB |
| Slots | 2 x DIMM |
| Supported Memory | Up to DDR4 3200(OC) / 2933 / 2666 / 2400 / 2133 MHz |
| Type | DDR4 Dual Channel |
| Expansion Slots | |
| Pcie X1 | 1 x PCIe 3.0 x1 |
| Pcie X16 | 1 x PCIe 4.0 x16 (11 th Gen) / PCIe 3.0 x16 (10 th Gen) |
| Tpm | |
| Tpm Header | 1 x SPI TPM Header |
| Warranty Information | |
| Warranty | 3 Years |
Description
The ASRock H510M-HDV/M.2 is a compact and efficient Micro ATX motherboard designed for 10th and 11th Gen Intel Core processors. It supports DDR4 memory up to 3200MHz (OC), offers a high-speed Ultra M.2 slot for NVMe SSDs, and features Base Frequency Boost (BFB) Technology for improved performance. With triple display output support and essential features like Gigabit LAN, surge protection, and premium components, it provides excellent value for budget and entry-level builds.
Best ASRock H510M-HDV/M.2 10th and 11th Gen Micro ATX Motherboard price in BD
ASRock H510M-HDV/M.2 10th and 11th Gen Micro ATX Motherboard price in Bangladesh — please call/message for the latest price. Price may vary based on configuration and availability. Order from the Primes Computers website or visit our showrooms.
