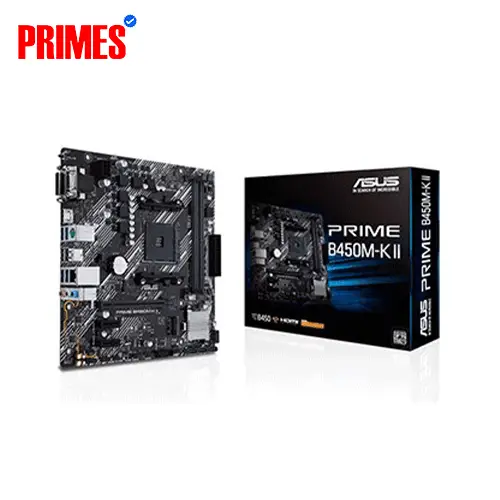

ASUS PRIME B450M-K II Motherboard
Price: 9,500৳
Stock: In stock
Product Code: #2073
Brand: Asus
Key Features:
AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen
AMD B450 Chipset
2 x DIMM, Max. 64GB, DDR4 4400(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
PCIe 3.0 x16 slot
Realtek 1Gb Ethernet
Integrated Graphics in AMD Ryzen with Radeon Vega Graphics Processors
Payment Options
Selected: Cash
Specification
| Power Design And Protection | |
| 10+1 Drmos Power Stages | VRM delivers power and efficiency for latest processors |
| 5X Protection Iii | Multiple hardware safeguards for all-around system protection |
| All-Around Energy Efficiency | Energy Processing Unit (EPU) for system-wide power savings, automatic optimization of power consumption, Away mode for maximized savings |
| Digi+ Vrm & Epu | Precise Digital Power Control with real-time control over voltage droop, automatic switching of frequency and power-efficiency settings; fine-tune CPU for stability and performance |
| Dram Overcurrent Protection | Onboard resettable fuses prevent overcurrent and short-circuit damage |
| Overvoltage Protection | Exclusive circuit design with built-in voltage regulators to protect from damage by unexpected high-level voltages from unstable power supplies |
| Procool Connectors | Proprietary connectors with 8+4 pin for direct 12 V power to processors; solid pins handle more current than hollow-pin connectors |
| Stainless-Steel Back I/O | 3 X corrosion-resistance for greater durability (bonded with chromium oxide, lifespan three times longer than ordinary panels) |
| Cooling | |
| 4-Pin Pwm/Dc Fan Support | Onboard CHA FAN header supports PWM and DC mode |
| Comprehensive Cooling | PCH heatsink, Fan Xpert software |
| Flexible Cooling Controls | Fan Xpert provides comprehensive control over system fans; Auto-Tuning mode configures parameters with one click; Extreme Quiet mode reduces chassis fan speeds below default minimum for light tasks |
| Hybrid Fan Headers With Multiple Temperature Sources | Each header monitors and reacts to dedicated thermal sensors |
| Smart Protection | Dedicated integrated circuit protects fan header from short circuit and over temperature |
| Bios | |
| Advanced Tuning | Intuitive Advanced mode for complete control, built-in search function to find options, ASUS User Profile (port configuration settings between BIOS versions or share with others), various Advanced functions for nuanced adjustments |
| Bios | 128 Mb Flash ROM, UEFI AMI BIOS |
| Quick And Simple Setup | EZ mode displays vital settings and stats, guided wizards, drag-and-drop functionality, one-click application of settings, Intuitive Graphical Fan Control (fine-tune fan settings by dragging a curve), EZ XMP (improve DRAM performance with one click) |
| Uefi Bios | Intelligently simplified options for beginners and comprehensive features for veterans |
| Ethernet | |
| Asus Languard | Hardware-level network protection with advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors for improved throughput and 2.5 X higher surge tolerance |
| Ethernet | Realtek RTL8111 H 1 Gb Ethernet |
| Memory | |
| Asus Optimem Ii Technology | Improved memory stability, compatibility, lower memory latencies at equivalent voltages, and improved memory frequency margin |
| Channel Supported | Dual Channel |
| Maximum Memory | 64 GB |
| Revisions To Trace Routing | Provide unrestricted access to memory bandwidth, with careful mapping of memory signal pathways across PCB layers to reduce vias and add shielding zones (e.g., top layer ground ring to prevent lateral interference) |
| Slots | 2 x DIMM |
| Supported Memory | 4400(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory |
| Tested With Synopsys Hspice Simulation Software | Yes |
| Type | DDR4 |
| Audio | |
| Audio | Realtek ALC887/897 7.1-Channel High Definition Audio CODEC |
| Audio Features | LED-illuminated design, Audio Shielding, Premium Japanese audio capacitors, Dedicated audio PCB layers |
| Back Panel I/O Ports | |
| Back Panel I/O Ports | PS/2, HDMI, DVI-D, D-Sub, LAN, Audio jacks, USB ports |
| Chipset | |
| Chipset | AMD B450 Chipset |
| Form Factor | |
| Form Factor | mATX |
| Usb | |
| Front | 2 x USB 3.2 Gen 1, 4 x USB 2.0 |
| Front Usb | 6 ports |
| Rear | 2 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 |
| Rear Usb | 6 ports |
| Graphics | |
| Graphics | Integrated Graphics in AMD Ryzen with Radeon Vega Graphics Processors |
| Multi-Gpu Support | No |
| Internal I/O Ports | |
| Internal I/O Ports | Fan headers, Aura RGB headers, USB headers, SATA connectors, etc. |
| Expansion Slots | |
| Led Illumination For Pcie Slot And Audio Trace Paths | Lighting control |
| Pci | 1 x PCIe 3.0 x16 slot, 2 x PCIe 2.0 x1 slots |
| Pcie 3.0 X16 Slot With Asus Safeslot Core | Yes |
| Storage | |
| M.2 Slot | 1 x M.2 2280 (PCIe 3.0 x4 & SATA mode, up to 32 Gb/s) |
| Sata | 4 x SATA 6 Gb/s |
| Total Supports | 1 x M.2 slot and 4 x SATA 6 Gb/s ports |
| Special Features | |
| Special Features | BIOS FlashBack™, D-Sub, DVI-D, HDMI, PS/2, 2 x USB 3.2 Gen 1 (rear), 2 x USB 2.0 (rear), Realtek LAN, 2 x USB 3.2 Gen 1 (front), 4 x USB 2.0 (front), 3 x Audio jacks |
| Processor | |
| Supported Cpu | AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3 rd/2 nd/1 st Gen AMD Ryzen/ 2 nd and 1 st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors |
| Supports Amd 120W Cpu | Yes |
| Operating System Support | |
| Supported Operating System | Win11 |
| Warranty Information | |
| Warranty | 3 Years |
Description
The ASUS PRIME B450M-K II is a micro ATX motherboard featuring M.2 support, USB 3.2 Gen 1 Type-A, 1 Gb Ethernet, HDMI/DVI-D/D-Sub, BIOS FlashBack. Prime B450M-K II caters to daily users and all builders looking for well-rounded specs and a range of options for performance tuning via intuitive software and firmware. ASUS PRIME B450M-K II is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Prime B450M-K II is safe for builders of all skillsets. Building a PC is a cinch with features like the following.
Best ASUS PRIME B450M-K II Motherboard price in BD
ASUS PRIME B450M-K II Motherboard price in Bangladesh starts from ৳9,500. Price may vary based on configuration and availability. Order from the Primes Computers website or visit our showrooms.
