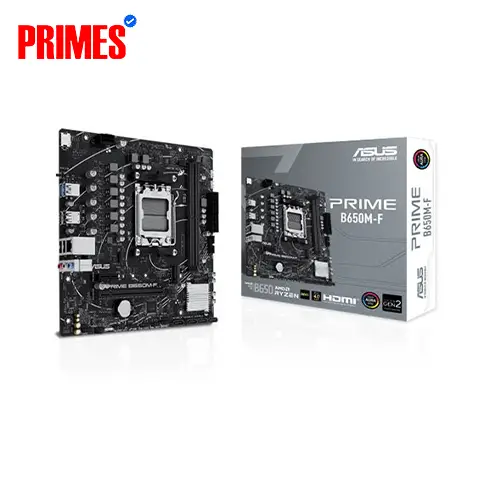

ASUS PRIME B650M-F AM5 DDR5 Motherboard
Price: 14,200৳
Stock: In stock
Product Code: #2074
Brand: Asus
Key Features:
AMD Socket AM5 for AMD Ryzen 9000/8000/7000 Series Desktop Processors
AMD B650 Chipset
2 x DIMM, Max. 96GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory
PCIe 4.0 support
Realtek 2.5Gb Ethernet
Integrated Graphics Processor
Payment Options
Selected: Cash
Specification
| Usb | |
| 1 X Front Usb 5Gbps Header | Yes |
| Front Usb | 7 ports |
| Rear And Front Usb 5Gbps | Yes |
| Rear Usb | 8 ports |
| Usb 2.0 | Yes |
| Usb 5Gbps Type-A | Yes |
| Power Design And Protection | |
| 5X Protection Iii | Multiple hardware safeguards for all-around system protection |
| All-Around Energy Efficiency | Energy Processing Unit (EPU) for system-wide power savings, automatic optimization of power consumption, Away mode for maximized savings |
| Digi+ Vrm & Epu | Precise Digital Power Control with real-time control over voltage droop, automatic switching of frequency and power-efficiency settings; fine-tune CPU for stability and performance |
| Dram Overcurrent Protection | Onboard resettable fuses prevent overcurrent and short-circuit damage |
| Overvoltage Protection | Exclusive circuit design with built-in voltage regulators to protect from damage by unexpected high-level voltages from unstable power supplies |
| Procool Connectors | Proprietary connectors with 8 pin for direct 12 V power to processors; solid pins handle more current than hollow-pin connectors |
| Stainless-Steel Back I/O | 3 X corrosion-resistance for greater durability (bonded with chromium oxide, lifespan three times longer than ordinary panels) |
| Memory | |
| Asus Enhanced Memory Profile (Aemp) | Optimized frequency, timing, and voltage profiles |
| Channel Supported | Dual Channel |
| Ddr5 Performance Enhancement | Vast AMD Extended Profiles for Overclocking (EXPO™) support |
| Maximum Memory | 96 GB |
| Slots | 2 x DIMM |
| Supported Memory | 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory |
| Type | DDR5 |
| Audio | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Audio Features | Premium audio capacitors, Audio Shielding, Dedicated audio PCB layers |
| Back Panel I/O Ports | |
| Back Panel I/O Ports | 1 x HDMI, 1 x DisplayPort, LAN, Audio jacks, USB ports |
| Bios | |
| Bios | 256 Mb Flash ROM, UEFI AMI BIOS |
| Bios Flashback™ Button | Yes |
| Chipset | |
| Chipset | AMD B650 |
| Cooling | |
| Comprehensive Cooling | PCH heatsink, hybrid fan headers, Fan Xpert 2+, Multiple Temperature Sources (each header monitors and reacts to dedicated thermal sensors), Smart Protection (dedicated integrated circuit protects fan header from short circuit and over temperature), 4-Pin PWM/DC Fan support (onboard CHA FAN header supports PWM and DC mode) |
| Ethernet | |
| Ethernet | Realtek 2.5 Gb Ethernet |
| Reduces Cpu Overhead | Offers high TCP and UDP throughput |
| Form Factor | |
| Form Factor | mATX |
| Graphics | |
| Graphics | Integrated Graphics Processor |
| Multi-Gpu Support | No |
| Internal I/O Ports | |
| Internal I/O Ports | Fan headers, Addressable Gen 2 headers, USB headers, SATA connectors, etc. |
| Storage | |
| M.2 Slot | 1 x M.2 2280 (PCIe 4.0 x4 mode), 1 x M.2 2280 (PCIe 4.0 x4 mode) |
| Sata | 4 x SATA 6 Gb/s |
| Total Supports | 2 x M.2 slots and 4 x SATA 6 Gb/s ports |
| Expansion Slots | |
| Pci | 1 x PCIe 4.0 x16 slot, 2 x PCIe 4.0 x1 slots |
| Pcie 4.0 Slot | Yes |
| Special Features | |
| Special Features | PBO Enhancement UI setting, Power Saving settings UI, FAN Xpert 2+ for cooling controls, Digi+ VRM for Precise Digital Power Control |
| Processor | |
| Supported Cpu | AMD Socket AM5 for AMD Ryzen 9000/8000/7000 Series Desktop Processors |
| Supports Up To Amd 120W Cpu | Yes |
| Operating System Support | |
| Supported Operating System | Win11 |
| Warranty Information | |
| Warranty | 3 Years |
Description
The ASUS PRIME B650M-F is a compact yet powerful motherboard designed for AMD Ryzen 7000, 8000, and 9000 series processors. Utilizing the AMD B650 chipset, it supports the latest DDR5 memory, allowing for faster data processing and system responsiveness. It supports AMD Socket AM5 and is compatible with the Ryzen 7000, 8000, and 9000 series processors, allowing for superior processing speeds. It features two DIMM slots with support for up to 96GB of DDR5 memory, enabling overclocking capabilities up to 7200MHz.
Best ASUS PRIME B650M-F AM5 DDR5 Motherboard price in BD
ASUS PRIME B650M-F AM5 DDR5 Motherboard price in Bangladesh starts from ৳14,200. Price may vary based on configuration and availability. Order from the Primes Computers website or visit our showrooms.
