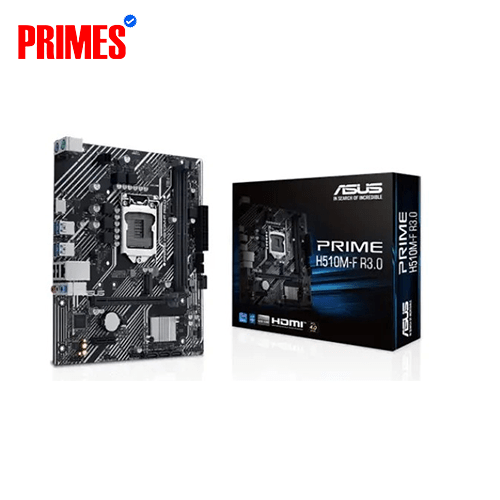

ASUS PRIME H510M-F R3.0 INTEL 10/11 GEN LGA1200 Motherboard
Price: 10,000৳
Stock: In stock
Product Code: #2076
Brand: Asus
Key Features:
Intel LGA 1200 socket for 11th and 10th Gen Intel Processors
Intel H510 Chipset
2 x DIMM, Max. 64GB, DDR4 3200(OC)/2933(OC)/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
PCIe 4.0 support
Realtek 1 Gb Ethernet
1 x D-Sub port, 1 x HDMI port
Payment Options
Selected: Cash
Specification
| Audio | |
| Audio | Realtek ALC897/887 7.1-Channel High Definition Audio CODEC |
| Audio Features | Audio Shielding, Premium Audio Capacitors, Dedicated Audio PCB Layers |
| Back Panel I/O Ports | |
| Back Panel I/O Ports | PS/2, D-Sub, HDMI, Ethernet, Audio jacks, USB ports |
| Bios | |
| Bios | 128 Mb Flash ROM, UEFI AMI BIOS |
| Memory | |
| Channel Supported | Dual Channel |
| Maximum Memory | 64 GB |
| Slots | 2 x DIMM |
| Supported Memory | 3200(OC)/2933(OC)/2800/2666/2400/2133 Non-ECC, Un-buffered Memory |
| Type | DDR4 |
| Chipset | |
| Chipset | Intel H510 |
| Ethernet | |
| Ethernet | Realtek 1 Gb Ethernet |
| Form Factor | |
| Form Factor | mATX |
| Usb | |
| Front Usb | 6 ports |
| Rear Usb | 4 ports |
| Graphics | |
| Graphics | 1 x D-Sub port, 1 x HDMI port |
| Multi-Gpu Support | No |
| Internal I/O Ports | |
| Internal I/O Ports | Fan headers, USB headers, SATA connectors, etc. |
| Storage | |
| M.2 Slot | 1 x M.2 2280 (PCIe 3.0 x4 mode) |
| Sata | 4 x SATA 6 Gb/s |
| Total Supports | 1 x M.2 slot and 4 x SATA 6 Gb/s ports |
| Expansion Slots | |
| Pci | 1 x PCIe 4.0 x16 slot, 1 x PCIe 3.0 x1 slot |
| Special Features | |
| Special Features | ASUS 5 X Protection III, ASUS OptiMem, ASUS EPU, AI Suite 3, Ai Charger, PC Cleaner, ASUS Quiet Thermal Solution, ASUS EZ DIY, ASUS Q-Design, M.2 Onboard |
| Processor | |
| Supported Cpu | Intel Socket LGA1200 for 11 th Gen Intel Core Processors & 10 th Gen Intel Core, Pentium Gold and Celeron Processors |
| Supports Intel Turbo Boost Technology 2.0 And Intel Turbo Boost Max Technology 3.0 | Yes |
| Operating System Support | |
| Supported Operating System | Windows 11 / 10 |
| Warranty Information | |
| Warranty | 3 Years |
Description
The ASUS PRIME H510M-F R3.0 is a powerful and versatile Intel H470 (LGA1200) micro-ATX motherboard, designed to fully unleash the potential of 11th and 10th-generation Intel processors. It supports Intel LGA 1200 socket, Ready for 11th and 10th Gen Intel Processors. Prime H610 series are built to handle the additional cores and increased bandwidth of 11th Generation Intel Core processors. ASUS H510 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Best ASUS PRIME H510M-F R3.0 INTEL 10/11 GEN LGA1200 Motherboard price in BD
ASUS PRIME H510M-F R3.0 INTEL 10/11 GEN LGA1200 Motherboard price in Bangladesh starts from ৳10,000. Price may vary based on configuration and availability. Order from the Primes Computers website or visit our showrooms.
