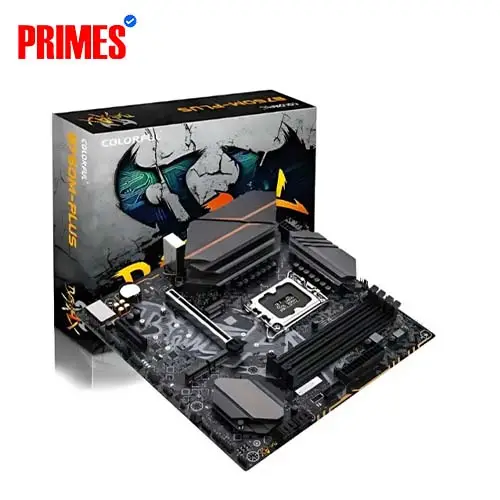

Colorful BATTLE‑AX B760M‑PLUS D5 V20 Motherboard
Price: 17,400৳
Stock: In stock
Product Code: #61
Brand: Colorful
Key Features:
mATX LGA1700 motherboard — Intel 12th/13th/14th Gen, DDR5 up to 192 GB @6800 MHz (OC), triple PCIe 4.0 x4 M.2, Realtek RTL8125 2.5 Gb LAN, USB‑C Gen2, 3‑year warranty
Payment Options
Selected: Cash
Specification
| Rear I/O Ports | |
| 2.5G Lan | 1 |
| Audio Jacks | 3 |
| Displayport | 1 |
| Hdmi | 1 |
| Usb 2.0 | 4 |
| Usb 3.2 Gen1 Type‑A | 2 |
| Usb‑C Gen2 | 1 |
| Onboard Headers | |
| Argb 5 V 3‑Pin | 2 |
| Bios Burner | 1 |
| Clear Cmos | 1 |
| Cpu Fan | 1 |
| Diagnostic Card | 1 |
| Me Write Protect | 1 |
| Pump | 1 |
| Rgb 12 V 4‑Pin | 2 |
| Rgb Control Jumper | 1 |
| System Fan | 3 |
| Usb 2.0 Header | 1 |
| Usb 3.2 Gen1 Header | 1 |
| Usb 3.2 Gen1 Type‑C Header | 1 |
| Audio | |
| Channels | 5.1 |
| Basic Information | |
| Chipset | Intel B760 |
| Cpu Socket | LGA1700 |
| Supported Cpu | Intel 12 th/13 th/14 th Gen Core‑Cluster, Pentium, Celeron |
| Extras | |
| Cooling Armor | BATTLE‑AX series |
| Pcb Process | Atomized |
| Protection | Six‑fold |
| Form Factor | |
| Dimensions | 245×245 mm |
| Type | Micro‑ATX |
| Graphics | |
| Displayport | 1× DP 1.2 (4 K@60 Hz) |
| Hdmi | 1× HDMI 2.0 (4 K@60 Hz) |
| Memory | |
| Dual Channel | Yes |
| Max Capacity | 192 GB (48 GB per slot) |
| Slots | 4 |
| Speed | 4800‑6800 MHz (OC) |
| Type | DDR5 |
| Xmp Support | Yes |
| Networking | |
| Lan | Realtek RTL8125 2.5 Gb |
| Wi‑Fi/Bt | CNVi slot (module not included) |
| Bios | |
| Languages | Multiple |
| Type | 128 MB UEFI |
| Storage & Expansion | |
| M.2 Slots | 3× PCIe 4.0 x4 (2242/2260/2280) |
| Pcie 3.0 X4 | 1 |
| Pcie 5.0 X16 | 1 |
| Raid | 0/1/5/10 |
| Sata | 4× SATA 6 Gb/s |
| Warranty | |
| Period | 3 years |
| Power Design | |
| Vrm | 12+1+1‑phase |
Description
The Colorful BATTLE‑AX B760M‑PLUS D5 V20 is a compact micro‑ATX motherboard featuring support for 12th/13th/14th Gen Intel Core/Pentium/Celeron CPUs on LGA1700. It offers four DDR5 DIMM slots (up to 192 GB, OC to 6800 MHz), three PCIe 4.0 x4 M.2 slots, one PCIe 5.0 x16 and one PCIe 3.0 x4 slot, four SATA 6 Gb/s ports, Realtek RTL8125 2.5 Gb Ethernet, and a CNVi Wi‑Fi/BT slot. Rear I/O includes HDMI 2.0, DP 1.2 (both 4K60), USB 3.2 Gen2 Type‑C, USB 3.2 Gen1 Type‑A, USB 2.0 ports, and 5.1‑channel audio. It features a reinforced 12+1+1‑phase VRM, BATTLE‑AX heat‑dissipation armor, six‑way protection, and comes with a 3‑year warranty.
Best Colorful BATTLE‑AX B760M‑PLUS D5 V20 Motherboard price in BD
Colorful BATTLE‑AX B760M‑PLUS D5 V20 Motherboard price in Bangladesh starts from ৳17,400. Price may vary based on configuration and availability. Order from the Primes Computers website or visit our showrooms.
