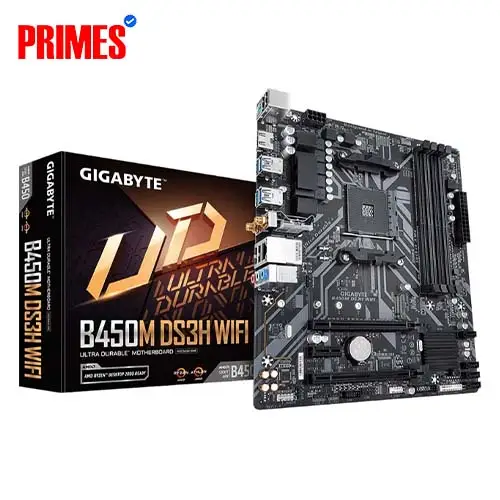

Gigabyte B450M DS3H AM4 AMD Micro ATX Motherboard
Price: To be announced
Stock: Out of stock
Product Code: #60
Brand: Gigabyte
Key Features:
Supports Ryzen 1st/2nd Gen & Vega APUs
AMD B450 Chipset
DDR4 up to 64GB
HDMI, DVI-D
Realtek GbE LAN, ALC887 Audio
Payment Options
Selected: Cash
Specification
| Basic Information | |
| Bios | 128 Mbit AMI UEFI BIOS, ACPI 5.0, PnP 1.0 a |
| Chipset | AMD B450 |
| Form Factor | Micro ATX (24.4 cm x 21.5 cm) |
| Supported Cpu | AMD Ryzen 1 st & 2 nd Gen, Ryzen with Radeon Vega Graphics |
| Audio | |
| Channels | 2/4/5.1/7.1-Channel HD Audio |
| Codec | Realtek ALC887 |
| Spdif | Yes |
| Graphics | |
| Dvi-D | 1 x DVI-D (1920x1200@60 Hz) |
| Hdmi | 1 x HDMI 2.0 (4096x2160@60 Hz) |
| Max Shared Memory | 2 GB |
| Internal I/O Ports | |
| Fan Headers | 1 x CPU, 1 x System |
| Headers | Front panel, front audio, S/PDIF, RGB LED, USB 3.1 Gen1, USB 2.0, serial, CMOS |
| Power | 1 x 24-pin ATX, 1 x 8-pin ATX 12 V |
| Tpm | |
| Header | 1 x TPM (2x10 pin, for GC-TPM2.0 module) |
| Connectivity | |
| Lan | Realtek GbE LAN (10/100/1000 Mbps) |
| Usb | 4 x USB 3.1 Gen 1 (rear), 2 x USB 3.1 Gen 1 (internal), 8 x USB 2.0 (4 rear, 4 internal) |
| Storage | |
| M.2 | 1 x M.2 NVMe/SATA (restrictions with Athlon/7 th Gen APU) |
| Sata | 4 x SATA 6 Gb/s, RAID 0/1/10 support |
| M.2 Socket | |
| M.2 Slot | 1 x M.2 Socket (2242/2260/2280/22110, PCIe 3.0 x4/x2 & SATA) |
| Memory | |
| Maximum Memory | 64 GB |
| Slots | 4 x DIMM |
| Supported | DDR4 3200(O.C.)/2933/2667/2400/2133, ECC/Non-ECC, XMP |
| Type | Dual Channel DDR4 |
| Expansion Slots | |
| Pcie Slots | 1 x PCIe 3.0 x16, 1 x PCIe 2.0 x16 (x4), 1 x PCIe 2.0 x1 |
| Warranty Information | |
| Warranty | 03 years |
Description
The Gigabyte B450M DS3H is a Micro ATX motherboard built on the AMD B450 chipset, supporting Ryzen 1st and 2nd Gen processors and Vega-based APUs. It offers 4 DIMM slots for up to 64GB DDR4 memory, dual display outputs (HDMI & DVI-D), M.2 NVMe and SATA support, Realtek Gigabit LAN, and high-definition 7.1-channel audio.
