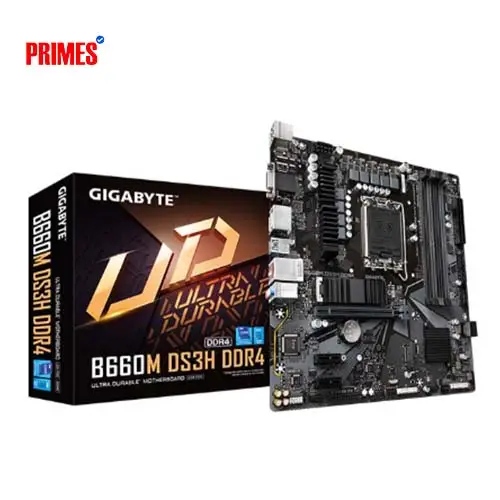

GIGABYTE B660M DS3H DDR4 Micro ATX Motherboard
Price: To be announced
Stock: Out of stock
Product Code: #117
Brand: Gigabyte
Key Features:
Supports 14th, 13th & 12th Gen Intel CPUs
DDR4 up to 5333MHz (OC), Dual Channel
2x PCIe 4.0 NVMe M.2 slots with Thermal Guard
2.5 GbE LAN with Bandwidth Management
Multiple Display Output Support
Payment Options
Selected: Cash
Specification
| Basic Information | |
| Audio | Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
| Chipset | Intel B660 Express |
| Form Factor | Micro ATX (24.4 cm x 24.4 cm) |
| Supported Cpu | 14 th, 13 th & 12 th Gen Intel Core, Pentium Gold, Celeron (LGA1700) |
| Special Features | |
| Bundled | Norton Internet Security, cFosSpeed |
| Others | Q-Flash Plus, Xpress Install, Norton Internet Security |
| Software | APP Center, EasyTune, Game Boost, RGB Fusion, Smart Backup |
| Audio | |
| Channels | 2/4/5.1/7.1-channel HD Audio |
| Codec | Realtek Audio CODEC |
| Connectivity | |
| D-Sub | 1 x D-Sub port |
| Displayport | 2 x DisplayPort |
| Hdmi | 1 x HDMI port |
| Lan | Realtek 2.5 GbE LAN |
| Usb | 1 x USB Type-C (USB 3.2 Gen 2), 5 x USB 3.2 Gen 1, 6 x USB 2.0 |
| Usb Internal | 2 x USB 3.2 Gen1, 4 x USB 2.0 |
| Usb Rear | 1 x USB Type-C (Gen2), 3 x USB 3.2 Gen1, 2 x USB 2.0 |
| Internal I/O | |
| Fan Headers | 1 x CPU, 3 x system |
| Led Headers | 1 x addressable LED, 1 x RGB LED |
| Others | TPM header, S/PDIF, Serial/Parallel, Reset, Q-Flash Plus |
| Power Connectors | 1 x 24-pin ATX, 1 x 8-pin 12 V |
| Rgb Headers | 1 x Addressable, 1 x RGB |
| Tpm Header | 1 x Trusted Platform Module header |
| Graphics | |
| Graphics Output | 1 x HDMI, 1 x D-Sub, 2 x DisplayPort |
| Max Resolution | HDMI: 4096x2160@60 Hz, DP: 4096x2304@60 Hz, D-Sub: 1920x1200@60 Hz |
| Multi-Display | Up to 4 displays simultaneously |
| Outputs | 1 x HDMI, 2 x DisplayPort, 1 x D-Sub |
| Tpm | |
| Header | Yes (For GC-TPM2.0 SPI module) |
| Storage | |
| M.2 Slots | 2 x M.2 PCIe 4.0 x4/x2 (M2A_CPU, M2P_SB) |
| Optane | Intel Optane Memory Ready |
| Raid | RAID 0, 1, 5, 10 (SATA) |
| Raid Support | RAID 0, 1, 5, 10 |
| Sata | 4 x SATA 6 Gb/s |
| Sata Ports | 4 x SATA 6 Gb/s |
| Memory | |
| Max Memory | Up to 128 GB |
| Maximum Memory | 128 GB |
| Slots | 4 x DIMM |
| Speed Support | Up to DDR4 5333 MHz (OC) |
| Supported Memory | Up to DDR4 5333(O.C.) / 2133 MHz |
| Type | DDR4 Dual Channel |
| Expansion Slots | |
| Pci Express | 1 x PCIe x16 (4.0), 2 x PCIe x1 (3.0) |
| Pcie X1 | 2 x PCIe 3.0 x1 |
| Pcie X16 | 1 x PCIe 4.0 x16 |
| Warranty Information | |
| Warranty | 3 Years |
Description
The GIGABYTE B660M DS3H DDR4 Micro ATX Motherboard supports 14th, 13th, and 12th Gen Intel Core processors with the LGA1700 socket. It features dual-channel DDR4 support up to 5333MHz (OC), dual PCIe 4.0 NVMe M.2 slots with Thermal Guard, and Realtek 2.5GbE LAN for ultra-fast connectivity. Ideal for powerful yet compact PC builds, it offers HDMI, D-Sub, and dual DisplayPort outputs, advanced audio, and robust connectivity with USB Type-C and USB 3.2 Gen 1 support.
