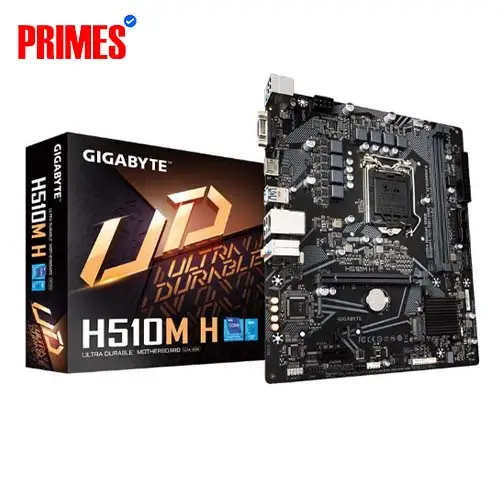

Gigabyte H510M H Intel 10th/11th Gen Micro ATX Motherboard
Price: To be announced
Stock: Out of stock
Product Code: #59
Brand: Gigabyte
Key Features:
Intel H510 Chipset · Supports 10th/11th Gen Intel CPUs · Dual‑DIMM DDR4 64 GB · M.2 NVMe + SATA · HDMI, D‑Sub · USB 3.2 Gen1 · Realtek GbE LAN
Payment Options
Selected: Cash
Specification
| Basic Information | |
| Audio | Realtek Audio CODEC, HD Audio, 2/4/5.1/7.1‑channel |
| Bios | 256 Mbit AMI UEFI BIOS, ACPI 5.0, SMBIOS 2.7, PnP 1.0 a |
| Chipset | Intel H510 Express |
| Form Factor | Micro‑ATX (24.4 cm × 21.0 cm) |
| Supported Cpu | 10 th & 11 th Gen Intel Core, Pentium, Celeron (LGA1200) |
| Special Features | |
| Bundled | Norton OEM, Realtek LAN Utility |
| Software | @BIOS, EasyTune, Smart Backup, Q‑Flash |
| Graphics | |
| D‑Sub | 1 × D‑Sub (1920×1200 @ 60 Hz) |
| Hdmi | 1 × HDMI (4096×2160 @ 30 Hz) |
| Integrated Graphics | Intel HD Graphics via CPU, HDCP 2.3 support |
| Internal I/O Ports | |
| Fan Headers | 1 × CPU, 1 × System |
| Other Headers | RGB LED strip, front audio, front USB 3.2 Gen 1, USB 2.0, serial, Clear CMOS, TPM |
| Power | 1 × 24‑pin ATX, 1 × 8‑pin 12 V |
| Tpm | |
| Header | 1 × GC‑TPM 2.0 SPI header |
| Connectivity | |
| Lan | Realtek GbE LAN (1 Gbps) |
| Usb | 4 × USB 3.2 Gen 1 (2 rear + 2 internal), 6 × USB 2.0 (4 rear + 2 internal) |
| Storage | |
| M.2 | 1 × Socket 3, M-key (PCIe 3.0 x4 / SATA, supports 2260/2280/22110) |
| Sata | 4 × SATA 6 Gb/s |
| Memory | |
| Maximum Memory | 64 GB |
| Slots | 2 × DIMM |
| Supported | Up to DDR4‑3200 (11 th Gen), 2933‑2666 (10 th Gen); ECC/non‑ECC, XMP |
| Type | DDR4 |
| Expansion Slots | |
| Pcie X1 | 1 × PCIe 3.0 x1 |
| Pcie X16 | 1 × PCIe 4.0 x16 (11 th Gen only) |
| Warranty Information | |
| Warranty | 3 years |
Description
The Gigabyte H510M H is a Micro‑ATX motherboard based on the Intel H510 chipset, fully compatible with 10th and 11th Generation Intel Core, Pentium and Celeron processors. It supports DDR4 memory up to 64 GB, includes an M.2 slot for NVMe, HDMI and D‑Sub display outputs, multiple USB 3.2 Gen 1 ports, Realtek Gigabit LAN and HD audio—great for budget PC builds.
Best Gigabyte H510M H Intel 10th/11th Gen Micro ATX Motherboard price in BD
Gigabyte H510M H Intel 10th/11th Gen Micro ATX Motherboard price in Bangladesh — please call/message for the latest price. Price may vary based on configuration and availability. Order from the Primes Computers website or visit our showrooms.
