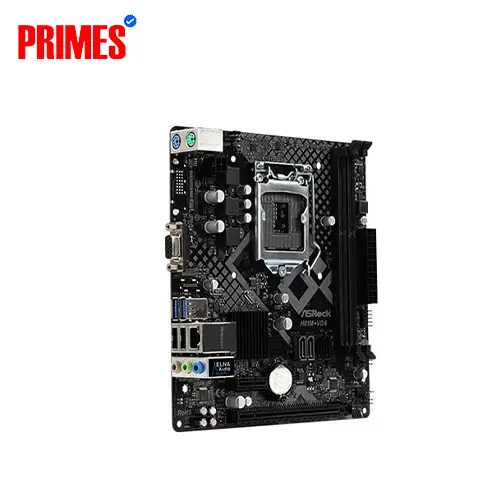

MOTHERBOARD ASROK H81-VGA R4.0 INTEL CHIPSET
Price: 7,500৳
Stock: In stock
Product Code: #2087
Brand: Asrock
Key Features:
Model: H81M-VG4 R4.0
Supports 4th Generation Intel Core Processors (Socket 1150)
Supports Dual Channel DDR3 1600
1 PCIe 2.0 x16, 1 PCIe 2.0 x1
Graphic Output: D-Sub
Payment Options
Selected: Cash
Specification
| General | |
| Brand | ASRock |
| Form Factor | Micro ATX Form Factor: 7.5-in x 6.7-in, 19.1 cm x 17.0 cm |
| Product Code | 23664 |
| Solid Capacitor Design | Yes |
| Software | |
| Bios | 32 Mb AMI UEFI Legal BIOS with multilingual GUI support, ACPI 1.1 Compliant wake up events, SMBIOS 2.3.1 support, CPU, DRAM Voltage multi-adjustment |
| Bundled | ASRock Live Update & APP Shop |
| Networking | |
| Chipset | Realtek RTL8111 H |
| Features | Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3 az, Supports PXE |
| Lan Port (S) | PCIE x1 Gigabit LAN 10/100/1000 Mb/s |
| Durability | |
| Chipset | Intel H81 |
| Pcb | Built with a High-Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity |
| Protection | The motherboard offers full spike protection. It includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes |
| Audio | |
| Codec | 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) |
| Features | Supports Surge Protection |
| Hd Audio Jack | Line in / Front Speaker / Microphone |
| Os Support | |
| Compatible | Windows 7/8/10 |
| Connectivity | |
| D-Sub (S) | 1 x D-Sub Port |
| Internal I/O Ports | 1 x Chassis Intrusion and Speaker Header, 1 x CPU Fan Connector (4-pin), 1 x Chassis Fan Connector (4-pin), 1 x 24 pin ATX Power Connector, 1 x 4 pin 12 V Power Connector, 1 x Front Panel Audio Connector |
| Tpm (Trusted Platform Module ) | 1 x TPM Header, 1 x SPI TPM Header |
| Cooling | |
| Fan Connectors | 1 x CPU Fan Connector (4-pin), 1 x Chassis Fan Connector (4-pin) |
| Graphics | |
| Features | Supports Intel HD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3 D) and MPEG-2 Full HW Encode1, Intel InTru 3 D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 4400/4600, Pixel Shader 5.0, DirectX 11.1, Supports D-Sub with max. resolution up to 1920x1200 @ 60 Hz |
| Max Shared Memory | 1024 MB |
| Cpu Support | |
| Features | Supports Intel Turbo Boost 2.0 Technology |
| Processors | Supports New 4 th and 4 th Generation Intel Core i7/i5/i3/Xeon/Pentium/Celeron Processors (Socket 1150) |
| Usb | |
| Headers | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) |
| Ports | 2 x USB 2.0 Ports (Supports ESD Protection), 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
| Memory | |
| Maximum Memory | 16 GB |
| Slots | 2 x DDR3/DDR3 L DIMM Slots |
| Supported Memory | Supports DDR3/DDR3 L 1600 / 1333/1066 non-ECC, un-buffered memory |
| Type | Dual Channel DDR3/DDR3 L Memory Technology |
| Expansion Slots | |
| Pci | 1 x PCI Express 2.0 x16 Slot (PCIE2: x16 mode) |
| Pci Express 2.0 X1 Slot | 1 x PCI Express 2.0 x1 Slot |
| Storage | |
| Supported Storage | 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug, 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug |
| Warranty Information | |
| Warranty | 3 Years |
Description
The ASRock H81M-VG4 R4.0 4th Gen Micro ATX Motherboard supports Intel 4th Generation Intel Core Processors (Socket 1150) and Dual Channel DDR3 1600. The Motherboard comes with 1 PCIe 2.0 x16, 1 PCIe 2.0 x1. It features a D-Sub port for graphic output. It is built with a High-Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. This ASRock motherboard uses a Realtek gigabit LAN chip to support extremely fast internet connections. The ASRock H81M-VG4 R4.0 features a solid capacitor design. The motherboard offers full spike protection. It includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes. It also comes with ASRock Live Update & APP Shop. The ASRock H81M-VG4 R4.0 comes with 3 years of warranty.
Best MOTHERBOARD ASROK H81-VGA R4.0 INTEL CHIPSET price in BD
MOTHERBOARD ASROK H81-VGA R4.0 INTEL CHIPSET price in Bangladesh starts from ৳7,500. Price may vary based on configuration and availability. Order from the Primes Computers website or visit our showrooms.
