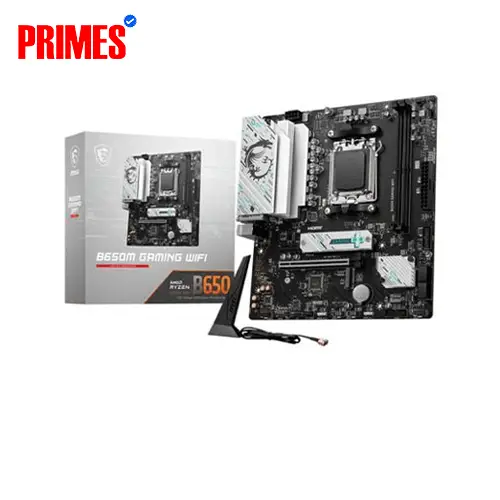

MSI B650M GAMING WIFI AM5 mATX Motherboard
Price: 18,800৳
Stock: In stock
Product Code: #2061
Brand: Msi
Key Features:
Model: B650M GAMING WIFI
Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 2x DDR5, up to 7800+(OC) MHz
Graphics Output: 1x HDMI, 1x Display Port
Features: Supports Bluetooth 5.3, AMD Wi-Fi 6E
Payment Options
Selected: Cash
Specification
| Basic Information | |
| Audio | Realtek ALC897 Codec; 7.1-Channel High Definition Audio |
| Chipset | AMD B650 |
| Form Factor | mATX; 226 mm x 243.84 mm |
| Supported Cpu | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5 |
| Connector & Ports | |
| Display Port(S) | 1 x DisplayPort |
| Hdmi | 1 x HDMI |
| Internal I/O Ports | INTERNAL IO; 1 x Power Connector(ATX_PWR); 1 x Power Connector(CPU_PWR); 1 x CPU Fan; 3 x System Fan; 2 x Front Panel (JFP); 1 x Chassis Intrusion (JCI); 1 x Front Audio (JAUD); 2 x Addressable V2 RGB LED connector (JARGB_V2); 1 x RGB LED connector(JRGB); 4 x USB 2.0 ports; 4 x USB 5 Gbps Type A ports; BACK PANEL PORTS; DisplayPort; HDMI; USB 3.2 Gen 1 5 Gbps (Type-A); 2.5 G LAN; Wi-Fi / Bluetooth; Audio connectors; Flash BIOS Button; USB 3.2 Gen 1 5 Gbps (Type-C); USB 3.2 Gen 1 5 Gbps (Type-A); USB 2.0 |
| Lan Port(S) | Realtek RTL8125 BG 2.5 Gbps LAN |
| Raid | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices |
| Supported Storage | 2 x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280 devices; M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280 devices; 4 x SATA 6 G; M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500 G is installed |
| Tpm (Trusted Platform Module) | 1 x TPM pin header(Support TPM 2.0) |
| Usb(S) | 2 x USB 2.0 (Rear); 4 x USB 2.0 (Front); 3 x USB 5 Gbps Type A (Rear); 1 x USB 5 Gbps Type C (Rear); 4 x USB 5 Gbps Type A (Front) |
| Wireless Communication Module | AMD Wi-Fi 6 E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX; Supports 20 MHz, 40 MHz, 80 MHz, 160 MHz bandwidth in 2.4 GHz/ 5 GHz or 6 GHz* bands; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth 5.3 |
| Graphics | |
| Graphics | 1 x HDMI; Support HDMI 2.1, maximum resolution of 4 K 60 Hz*; 1 x DisplayPort; Support DP 1.4, maximum resolution of 4 K 60 Hz* |
| Expansion Slots | |
| M.2 Socket | 2 x M.2 |
| Pci | 1 x PCI-E x16 slot; Supports x16/x1; Supports x16 (For Ryzen 7000 Series processors); Supports x8 (For Ryzen 7 8700 G and Ryzen 5 8600 G processors); Supports x4 (For Ryzen 5 8500 G processor); 1 x PCI-E x1 slot; PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) |
| Memory | |
| Maximum Memory | 128 GB |
| Slots | 2 |
| Supported Memory | 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz; Max. overclocking frequency: 1 DPC 1 R Max speed up to 7800+ MHz; 1 DPC 2 R Max speed up to 6400+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports AMD EXPO |
| Type | DDR5 |
| Processor | |
| Supported Cpu | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5 |
| Warranty Information | |
| Warranty | 3 Years |
Description
The MSI B650M GAMING WIFI AM5 mATX Motherboard is a powerhouse designed to elevate your gaming experience to new heights. Equipped with 1x HDMI and 1x Display Port, it ensures seamless connectivity to your display devices for stunning visuals and immersive gaming experiences. With Bluetooth 5.3 and AMD Wi-Fi 6E support, along with compatibility with AMD Ryzen 9000, 8000 and 7000 Series Desktop Processors, it offers unparalleled connectivity and processing power. DDR5 Memory support, capable of reaching speeds of up to 7800+(OC) MHz, ensures optimal performance, while Core Boost and Memory Boost technologies enhance stability and compatibility. Lightning Gen4 M.2 support and PCIe 4.0 slots deliver lightning-fast data transfer speeds, and Steel Armor reinforcement protects VGA cards from bending and electromagnetic interference. AUDIO BOOST technology provides studio-grade sound quality, and the high-quality 6-layer PCB made from 2oz thickened copper ensures superior durability and heat dissipation. The MSI B650M GAMING WIFI AM5 mATX Motherboard combines advanced features, robust construction, and unmatched performance to create the ultimate gaming platform for enthusiasts and gamers alike.
Best MSI B650M GAMING WIFI AM5 mATX Motherboard price in BD
MSI B650M GAMING WIFI AM5 mATX Motherboard price in Bangladesh starts from ৳18,800. Price may vary based on configuration and availability. Order from the Primes Computers website or visit our showrooms.
