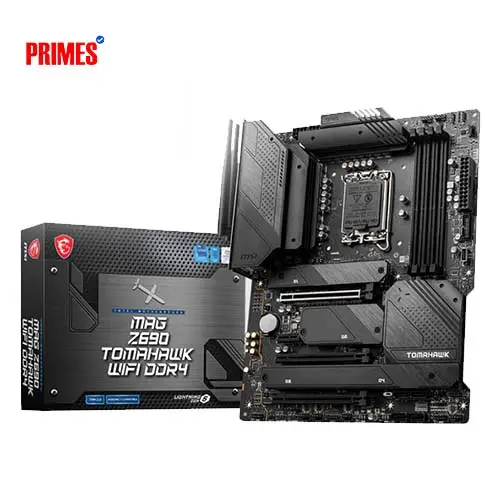

MSI MAG Z690 TOMAHAWK WIFI DDR4 ATX Motherboard
Price: To be announced
Stock: Out of stock
Product Code: #118
Brand: Msi
Key Features:
Model: MAG Z690 TOMAHAWK WIFI DDR4
Supports 14th/13th/12th Gen Intel CPUs
DDR4 up to 5200+ MHz OC
4x M.2 slots with Shield Frozr
2.5G LAN and Intel Wi-Fi 6
Payment Options
Selected: Cash
Specification
| Basic Information | |
| Audio | Realtek ALC4080, 7.1-Channel HD Audio, S/PDIF out |
| Chipset | Intel Z690 |
| Form Factor | ATX 30.5 cm x 24.4 cm |
| Supported Cpu | Supports 12 th, 13 th & 14 th Gen Intel Core, Pentium Gold & Celeron Processors (LGA1700) |
| Special Features | |
| Cooling | Extended Heatsink Design, M.2 Shield Frozr |
| Wireless | Intel Wi-Fi 6 module (pre-installed), MU-MIMO, AX support |
| Connectivity | |
| Displayport | 1 x DisplayPort 1.4 |
| Hdmi | 1 x HDMI 2.1 |
| Lan | Intel I225 V 2.5 Gbps |
| Usb Ports | 1 x USB 3.2 Gen2x2 Type-C, 4 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1, 6 x USB 2.0 |
| Wi-Fi | Intel Wi-Fi 6, Bluetooth 5.2 |
| Internal I/O | |
| Fan Headers | 1 x CPU, 6 x system, 1 x water pump |
| Other Headers | Front audio, TPM, Clear CMOS, TBT, Chassis Intrusion |
| Power Connectors | 1 x 24-pin ATX, 2 x 8-pin ATX 12 V |
| Usb Headers | 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 1, 2 x USB 2.0 |
| Storage | |
| M.2 Slots | 4 x M.2 (PCIe 4.0/3.0 x4, SATA), Optane Ready, RAID 0/1/5/10 support |
| Sata Ports | 6 x SATA 6 Gb/s |
| Memory | |
| Max Memory | 128 GB |
| Slots | 4 x DIMM |
| Speed Support | Up to 5200+ MHz (OC), Dual-Channel, XMP Support |
| Type | DDR4 |
| Graphics | |
| Max Resolution | 4 K @ 60 Hz |
| Multi-Gpu | Supports AMD CrossFire |
| Output | 1 x HDMI 2.1, 1 x DisplayPort 1.4 |
| Expansion Slots | |
| Pcie Slots | 1 x PCIe 5.0 x16, 1 x PCIe 3.0 x4, 1 x PCIe 3.0 x1 |
| Warranty Information | |
| Warranty | 3 years |
Description
The MSI MAG Z690 TOMAHAWK WIFI DDR4 is an ATX motherboard designed for 12th, 13th, and 14th Gen Intel Core processors. It features support for DDR4 memory up to 5200+ MHz OC, and includes 4x M.2 slots with Shield Frozr for optimal cooling. With PCIe 5.0 support, 2.5G LAN, Intel Wi-Fi 6, HDMI 2.1 and DisplayPort 1.4 outputs, this board is equipped for gaming and productivity. It also includes premium audio via Realtek ALC4080 and supports up to 128GB RAM. Extensive connectivity and fan headers make it an ideal choice for enthusiasts.
Best MSI MAG Z690 TOMAHAWK WIFI DDR4 ATX Motherboard price in BD
MSI MAG Z690 TOMAHAWK WIFI DDR4 ATX Motherboard price in Bangladesh — please call/message for the latest price. Price may vary based on configuration and availability. Order from the Primes Computers website or visit our showrooms.
