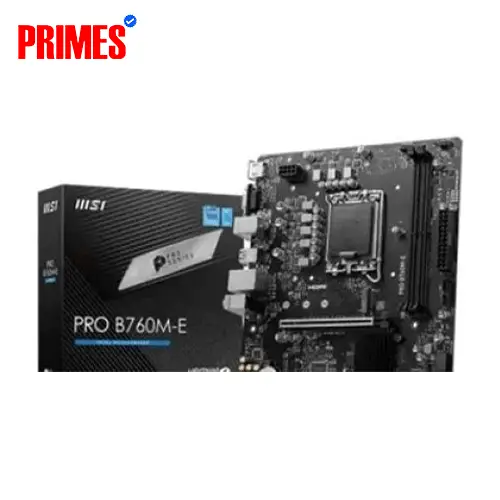

MSI PRO B760M-E DDR5 m-ATX Motherboard
Price: 13,000৳
Stock: In stock
Product Code: #2064
Brand: Msi
Key Features:
Model: B760M-E
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 2x DDR5, Maximum Memory Capacity 96GB
Graphics Output: 1x HDMI, 1x VGA
Features: Realtek RTL8111H Gigabit LAN
Payment Options
Selected: Cash
Specification
| Basic Information | |
| Audio | Realtek ALC897 Codec; 7.1-Channel High Definition Audio |
| Chipset | INTEL B760 |
| Form Factor | mATX; 200mmx236.16 mm |
| Supported Cpu | Support Intel Core 14 th/ 13 th/ 12 th Gen Processors, Intel Pentium Gold and Celeron Processors; LGA 1700 |
| Graphics | |
| Graphics | 1 x HDMI; Support HDMI 1.4 with HDR, maximum resolution of 4 K 30 Hz*; 1 x VGA |
| Connector & Ports | |
| Hdmi | 1 x HDMI 1.4 |
| Internal I/O Ports | 1 x Power Connector(ATX_PWR); 1 x Power Connector(CPU_PWR); 1 x CPU Fan; 2 x System Fan; 2 x Front Panel (JFP); 1 x Chassis Intrusion (JCI); 1 x Front Audio (JAUD); 1 x Com Port (JCOM); 1 x RGB LED connector(JRGB); 1 x TPM pin header(Support TPM 2.0); 4 x USB 2.0 ports; 2 x USB 3.2 Gen1 Type A ports |
| Lan Port (S) | Realtek RTL8111 H Gigabit LAN |
| Raid | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Supported Storage | 1 x M.2; M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4 x SATA 6 G |
| Tpm (Trusted Platform Module) | 1 x TPM pin header(Support TPM 2.0) |
| Usb (S) | 4 x USB 2.0 (Rear); 4 x USB 2.0 (Front); 2 x USB 3.2 Gen1 Type A (Rear); 2 x USB 3.2 Gen1 Type A (Front) |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 |
| Pci | 1 x PCI-E x16 slot; 1 x PCI-E x1 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Memory | |
| Maximum Memory | 96 GB |
| Slots | 2 x DIMM |
| Supported Memory | Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC); Max. overclocking frequency: • 1 DPC 1 R Max speed up to 6400+ MHz; • 1 DPC 2 R Max speed up to 5600+ MHz |
| Type | DDR5 |
| Others | |
| Special Features | 1 x RGB LED connector(JRGB) |
| Warranty Information | |
| Warranty | 3 years |
Description
The MSI PRO B760M-E DDR5 m-ATX Motherboard will give an experience next-level computing performance. This powerful motherboard is made to handle the needs of modern computing. This motherboard is designed to accommodate Pentium Gold, Celeron, and 14th, 13th, and 12th generation Core CPUs with an LGA 1700 socket. It offers a flexible foundation for a variety of computer activities, including demanding programs and gaming. The B760M-E has enhanced memory capabilities thanks to its support for DDR5 memory, which has two DDR5 slots and a maximum memory capacity of 96GB. Because of the outstanding data transmission rates and responsiveness guaranteed by this, resource-intensive programs and multitasking are made possible. The primary characteristic of the B760M-E is connectivity. The motherboard has one HDMI connector, which allows for excellent graphics output and clear display graphics whether you're working on artistic projects or playing intense video games. Realtek RTL8111H Gigabit LAN is included to provide dependable and fast networking that can handle the demands of data transfer and online activities. The 7.1-Channel High Definition Audio offers immersive and crystal-clear sound quality, which will be appreciated by audio fans. The B760M-E's audio features improve your whole experience whether you're playing games, viewing movies, or having a video conference. With its design catering to both enthusiasts and pros, the MSI PRO B760M-E DDR5 mATX Motherboard offers a strong base for your computer setup by integrating performance, connection, and audio features. With this feature-rich motherboard that achieves the ideal balance between dependability and high-performance capabilities, you can enhance your computer experience.
Best MSI PRO B760M-E DDR5 m-ATX Motherboard price in BD
MSI PRO B760M-E DDR5 m-ATX Motherboard price in Bangladesh starts from ৳13,000. Price may vary based on configuration and availability. Order from the Primes Computers website or visit our showrooms.
