DH-IPC-HFW2439T-AS-IL (Mini Bullet)
Price: 9,000৳
Stock: In stock
Product Code: #1752
Brand: Dahua
Key Features:
4MP resolution
Smart dual light illumination
Built-in mic
IP67 rating
PoE support
SMD motion detection
H.265+ compression
Compact design
Payment Options
Selected: Cash
Specification
| Video | |
| Ai Coding | AI H.265; AI H.264 |
| Bit Rate Control | CBR/VBR |
| Blc | Yes |
| Day/Night | Auto(ICR)/Color/B/W |
| Defog | Yes |
| Gain Control | Auto |
| Hlc | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Noise Reduction | 3 D NR |
| Privacy Masking | 8 areas |
| Region Of Interest (Roi) | Yes (4 areas) |
| Resolution | 4 M (2688 × 1520); 4 M (2560 × 1440); 3 M (2304 × 1296); 1080 p (1920 × 1080); 1.3 M (1280 × 960); 720 p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Scene Self-Adaptation (Ssa) | Yes |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Smart Illumination | Yes |
| Stream Capability | 3 streams |
| Video Bit Rate | H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps |
| Video Compression | H.265; H.264; H.264 H; H.264 B; MJPEG (Only supported by the sub stream) |
| Video Frame Rate | Main stream: 2688 × 1520@(1–25/30 fps ) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Wdr | 120 dB |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection |
| Port | |
| Alarm Input | 2 channels in: wet contact, 5 mA 3 V–5 V DC |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 V DC |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Audio | |
| Audio Compression | G.711 a; G.711 Mu; PCM; G.726; G.723 |
| Built-In Mic | Yes |
| Network | |
| Browser | IE: IE 9 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later |
| Cyber Security | Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1 x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI |
| Management Software | SmartPSS Lite; DSS; DMSS |
| Mobile Client | iOS; Android |
| Network Port | RJ-45 (10/100 Enhancement Base-T) |
| Network Protocol | IPV4; IPV6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2 P |
| Sdk And Api | Yes |
| Storage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS |
| User/Host | 20 (Total bandwidth: 80 M) |
| Structure | |
| Casing Material | Metal |
| Gross Weight | 0.86 kg (1.90 lb) |
| Net Weight | 0.70 kg (1.54 lb) |
| Product Dimensions | 209.6 mm × 90.4 mm × 90.4 mm (8.25" × 3.56" × 3. 56") (L × W × H) |
| Certification | |
| Certifications | CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| Lens | |
| Close Focus Distance | 2.8 mm: 0.9 m (2.95 ft) 3.6 mm: 1.6 m (5.25 ft) |
| Field Of View | 2.8 mm: H: 95°; V: 52°; D: 114° 3.6 mm: H: 78°; V: 41°; D: 94° |
| Focal Length | 2.8 mm; 3.6 mm |
| Iris Control | Fixed |
| Lens Mount | M12 |
| Lens Type | Fixed-focal |
| Max. Aperture | F1.6 |
| Camera | |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Illumination Distance | IR: 30 m (98.43 ft) Warm light: 30 m (98.43 ft) |
| Illuminator Number | 2 (IR LED); 2 (Warm light) |
| Illuminator On/Off Control | Auto; Manual |
| Image Sensor | 1/3" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| Min. Illumination | 0.004 lux@F1.6 (Color, 30 IRE) 0.0004 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Ram | 128 MB |
| Rom | 128 MB |
| S/N Ratio | >56 dB |
| Scanning System | Progressive |
| Intelligence | |
| Ivs (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| Smart Object Detection | Smart abandoned object; smart missing object |
| Smd | SMD 3.0 |
| Environment | |
| Operating Humidity | ≤95% |
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Protection | IP67; IK10 (optional) |
| Storage Humidity | 10–95% |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Power | |
| Power Consumption | Basic: 4 W (12 VDC); 5.8 W (24 VAC); 5.5 W (PoE) Max. (H.265+main stream/IR intensity+warm light on): 13 W (12 VDC) ; 17.3 W (24 VAC); 16.2 W (PoE) Heating: 3 W (12 VDC); 4.6 W (24 VAC); 4.3 W (Po E) |
| Power Supply | 12 VDC/24 VAC/PoE+ (802.3 at) |
| Warranty Information | |
| Warranty | 1 Year |
Description

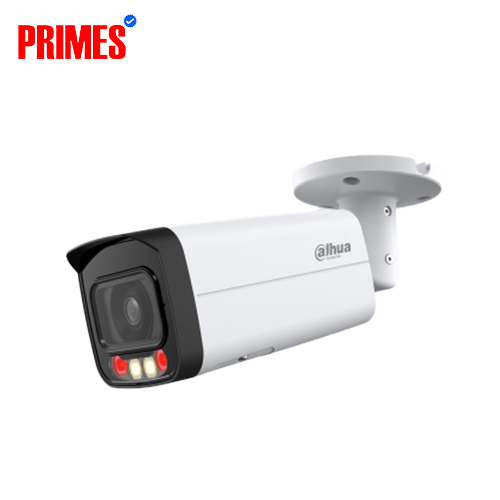

The DH-IPC-HFW2439T-AS-IL is a mini bullet camera with 4MP resolution.
1/3" CMOS sensor for high-quality images.
Fixed lens with smart dual light.
Built-in microphone for audio.
IP67 for weather resistance.
Supports advanced detection.
Efficient encoding.
Ideal for small spaces.
