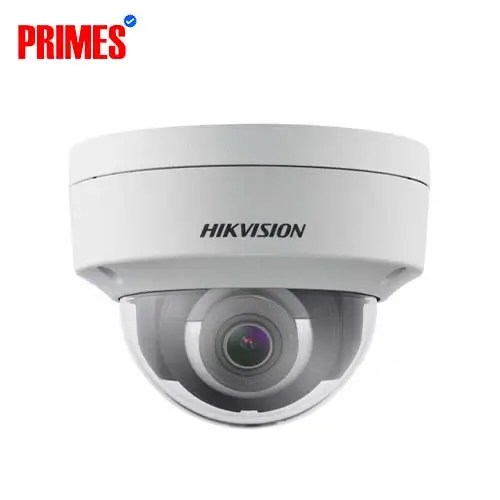

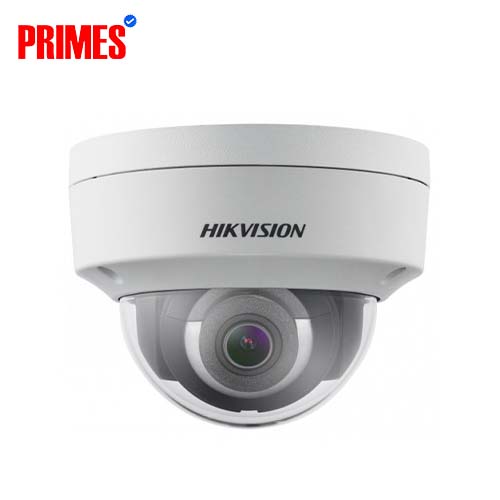

Hikvision DS-2CD2163G0-IS Mini Dome Network Camera
Price: To be announced
Stock: Out of stock
Product Code: #1718
Brand: Hikvision
Key Features:
High quality imaging with 6 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
-S: audio and alarm interface available
Water and dust resistant (IP67) and vandal proof (IK10)
Robust structure design with full metal materials
Payment Options
Selected: Cash
Specification
| General | |
| Available Models | DS-2CD2163G0-IS(2.8 mm), DS-2CD2163G0-IS(4 mm), DS-2CD2163G0-I(2.8 mm)(BLACK), DS-2CD2163G0-IS(2.8 mm)(BLACK), DS-2CD2163G0-I(2.8 mm), DS-2CD2163G0-I(4 mm) |
| Description | 6 MP Outdoor WDR Fixed Dome Network Camera |
| Features | High quality imaging with 6 MP resolution, Efficient H.265+ compression technology, Clear imaging against strong back light due to 120 dB true WDR technology, -S: audio and alarm interface available, Water and dust resistant (IP67) and vandal proof (IK10), Robust structure design with full metal materials |
| Firmware Version | 5.6.3 |
| General Function | One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Startup And Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) |
| Lens | |
| Aperture | F2.0 |
| Aperture Type | Fixed |
| Focus | Fixed |
| Fov | 2.8 mm, horizontal FOV: 97°, vertical FOV: 63°, diagonal FOV: 120°; 4 mm, horizontal FOV: 78°, vertical FOV: 50°, diagonal FOV: 97°; 6 mm, horizontal FOV: 60°, vertical FOV: 39°, diagonal FOV: 75°; 8 mm, horizontal FOV: 39.5°, vertical FOV: 26°, diagonal FOV: 48° |
| Lens Mount | M12 |
| Lens Type | 2.8/4/6/8 mm |
| Network | |
| Api | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Client | iVMS-4200, Hik-Connect |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users. 3 levels: administrator, operator and user |
| Web Browser | Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+; Local service: Chrome 57.0+, Firefox 52.0+ |
| Audio | |
| Audio Bit Rate | 64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32-192 Kbps(MP2L2) |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Physical | |
| Dimension | Ø110 mm × 93.2 mm (Ø4.3" × 3.7") |
| Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Weight | Approx. 320 g (0.7 lb.) |
| Video | |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main stream supports |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Main Stream | 50 Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Max. Resolution | 3072 × 2048 |
| Scalable Video Coding (Svc) | H.264 and H.265 encoding support |
| Sub Stream | 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240); 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240); 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Video Compression | Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 |
| Compatibility | |
| Image Enhancement | BLC, 3 D DNR |
| Wide Dynamic Range (Wdr) | Digital WDR |
| Illuminator | |
| Ir Wavelength | 850 nm |
| Smart Supplement Light | Yes |
| Supplement Light Range | Up to 30 m |
| Supplement Light Type | IR |
| Image Sensor | |
| Min. Illumination | Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR |
| Type | 1/2.9" Progressive Scan CMOS |
| Power | |
| Poe | 802.3 af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W |
| Power Supply | 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug |
| Warranty Information | |
| Warranty | 1 Year |
Description
The Hikvision DS-2CD2163G0-IS is a compact mini dome network camera offering 6MP high-resolution imaging for effective surveillance in Bangladesh. With 120 dB WDR and vandal-proof IK10 rating, it excels in challenging lighting and environments. The optional audio interface enhances security monitoring.
Perfect for indoor and outdoor networking applications, available at affordable prices in Bangladesh.
Best Hikvision DS-2CD2163G0-IS Mini Dome Network Camera price in BD
Hikvision DS-2CD2163G0-IS Mini Dome Network Camera price in Bangladesh — please call/message for the latest price. Price may vary based on configuration and availability. Order from the Primes Computers website or visit our showrooms.
