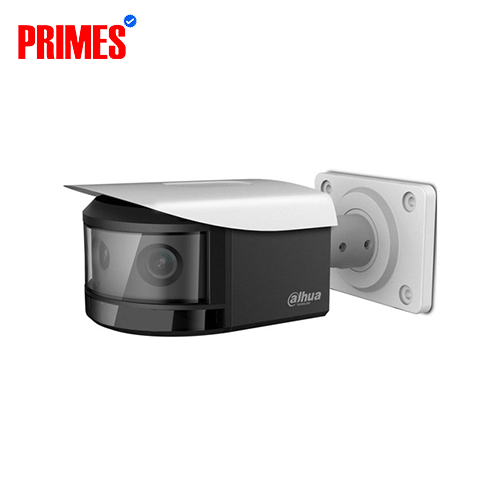

IPC-PFW8600-A180 (Panoramic)
Price: 60,000৳
Stock: In stock
Product Code: #1751
Brand: Dahua
Key Features:
Multi-sensor for 180° panoramic view
8MP total resolution
IR night vision up to 30m
IP67 weatherproof
Supports PoE+
H.265 compression
Intelligent features
Wide area coverage
Payment Options
Selected: Cash
Specification
| Interface | |
| Alarm | 2/1 channel In/Out |
| Audio Interface | 1/1 channel In/Out |
| Rs485 | N/A |
| Video Interface | N/A |
| Lens | |
| Angle Of View | H: 180˚, V:80˚ |
| Close Focus Distance | N/A |
| Focal Length | 3.6 mm |
| Focus Control | Fixed |
| Lens Type | Fixed |
| Max. Aperture | F1.8 |
| Mount Type | Board-in |
| Optical Zoom | N/A |
| Video | |
| Bit Rate | H.264: 24~16000 Kbps H.265: 14~9984 Kbps |
| Bit Rate Control | CBR/VBR |
| Blc Mode | BLC / HLC / WDR(120 dB) |
| Compression | H.265/H.264 |
| Day/Night | Auto(ICR) / Color / B/W |
| Defog | N/A |
| Digital Zoom | 16 x |
| Electronic Image Stabilization | Support |
| Flip | 180° |
| Frame Rate | Main Stream: 4096×1800(1~25/30 fps), Sub Stream: 1024×452(1~25/30 fps), Third Stream: 2048×896(1~25/30 fps) |
| Gain Control | Auto/Manual |
| Motion Detection | Off / On (4 Zone, Rectangle) |
| Noise Reduction | 3 D DNR |
| Privacy Masking | Off / On (4 Area, Rectangle) |
| Region Of Interest | Off / On (4 Zone) |
| Resolution | 4096×1800, 3840×1680, 2880×1264, 2048×896, 1920×832, 1280×560, 1024×452 |
| Smart Ir | Support |
| Streaming Capability | 3 Streams |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| Construction | |
| Casing | Metal |
| Dimensions | 298.4 mm×172.5 mm×120.0 mm (11.75”×6.79”×4.72”) |
| Gross Weight | 2.9 kg (6.39 lb) |
| Net Weight | 2.3 kg (5.07 lb) |
| Certifications | |
| Certifications | CE (EN 60950:2000), UL:UL60950-1, FCC: FCC Part 15 Subpart B |
| Audio | |
| Compression | G.711 a/ G.711 Mu/ AAC/ G.726 |
| Network | |
| Edge Storage | NAS, Local PC for instant recording, Mirco SD card 128 GB |
| Ethernet | RJ-45 (100/1000 Base-T) |
| Interoperability | ONVIF, PSIA, CGI |
| Management Software | Smart PSS, DSS, Easy4 ip |
| Max. User Access | 10 Users /20 Users |
| Protocol | HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour;802.1 x;Multicast;ICMP;IGMP;SNMP |
| Smart Phone | IOS, Android |
| Streaming Method | Unicast / Multicast |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Camera | |
| Effective Pixels | 4096(H)x1800(V) |
| Electronic Shutter Speed | Auto/Manual, 1/3(4)~1/100000 s |
| Image Sensor | Four 1/2.8” 2 Megapixel progressive scan CMOS |
| Ir Distance | Distance up to 30 m(98 ft) |
| Ir Leds | 8 |
| Ir On/Off Control | Auto/ Manual |
| Minimum Illumination | 0.007 Lux/F1.8( Color,1/3 s,30 IRE) 0.05 Lux/F1.8( Color,1/30 s,30 IRE) 0 Lux/F1.8(IR on) |
| Ram/Rom | 1024 MB/128 MB |
| S/N Ratio | More than 52 dB |
| Scanning System | Progressive |
| Environmental | |
| Ingress Protection | IP67 |
| Operating Conditions | -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH |
| Storage Conditions | -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH |
| Vandal Resistance | IK10 |
| Pan/Tilt/Rotation | |
| Pan/Tilt/Rotation Range | Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚ |
| Electrical | |
| Power Supply | AC24 V/3 A(±25%), PoE+(802.3 at) |
| Warranty Information | |
| Warranty | 1 Year |
Description
The IPC-PFW8600-A180 is a panoramic bullet camera with multi-sensors.
Four 2MP sensors provide 180° coverage.
Fixed lenses for seamless stitching.
IR illumination for low-light.
IP67 rated for outdoor durability.
Efficient encoding for storage savings.
Perfect for monitoring large spaces.
Best IPC-PFW8600-A180 (Panoramic) price in BD
IPC-PFW8600-A180 (Panoramic) price in Bangladesh starts from ৳60,000. Price may vary based on configuration and availability. Order from the Primes Computers website or visit our showrooms.
