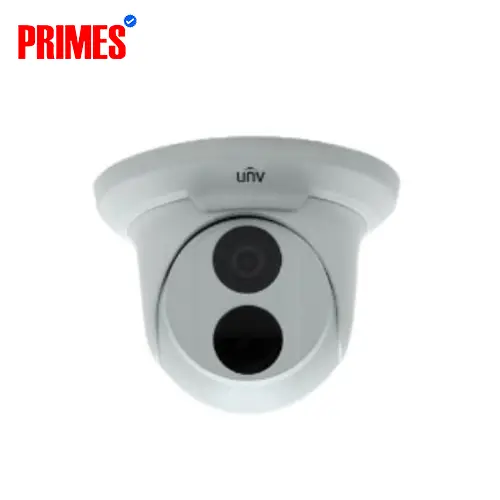

IPC3614SR3-DPF18-F (Mini Dome)
Price: To be announced
Stock: Out of stock
Product Code: #1776
Brand: Uniview
Key Features:
4MP resolution
Fixed 2.8mm lens
IR night vision up to 30m
Built-in mic
IP67 weatherproof
PoE support
Ultra 265 compression
3-Axis adjustment
Payment Options
Selected: Cash
Specification
| General | |
| Dimensions | Φ126 x 94 mm (Ø5.0” x 3.7”) |
| Ingress Protection | IP67 |
| Material | Metal + Plastic |
| Net Weight | 0.45 kg (0.99 lb) |
| Power | DC 12 V±25%, PoE (IEEE 802.3 af) |
| Power Consumption | Max 5.5 W |
| Reset Button | Supported |
| Storage Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 2 KV |
| Working Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) |
| Camera | |
| Angle Of View | H: 99.1°, V: 53.4°, O: 118.9° |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Defog | Digital Defog |
| Digital Noise Reduction | 2 D/3 D DNR |
| Ir On/Off Control | Auto/Manual |
| Ir Range | Up to 30 m (98 ft) |
| Lens | 2.8 mm@F2.0 |
| Minimum Illumination | Colour: 0.01 Lux (F2.0, AGC ON) 0 Lux with IR |
| S/N | >52 dB |
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS |
| Shutter | Auto/Manual, 1 ~ 1/100000 s |
| Wavelength | 850 nm |
| Wdr | DWDR |
| Audio | |
| Audio Compression | G.711 |
| Sampling Rate | 8 KHZ |
| Suppression | Supported |
| Video | |
| Blc | Supported |
| Dewarping | NA |
| Flip | Normal/Vertical/Horizontal/180° |
| Frame Rate | Main Stream: 4 MP (2592*1520), Max 20 fps; Sub Stream: 720 P (1280*720), Max 20 fps; Third Stream: D1 (720*576), Max 20 fps |
| H.264 Code Profile | Baseline profile, Main Profile |
| Hlc | Supported |
| Motion Detection | Up to 4 areas |
| Osd | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| Roi | Up to 2 areas |
| Smart Ir | Supported |
| Video Bit Rate | 128 Kbps~16 Mbps |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Interface | |
| Built-In Mic | Supported |
| Network | 1 RJ45 10 M/100 M Base-TX Ethernet |
| Certifications | |
| Ce | EN 60950-1 |
| Fcc | FCC Part 15 |
| Ul | UL60950-1 |
| Network | |
| Client | EZStation, EZView, EZLive |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below; Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
| Storage | |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR |
| Warranty Information | |
| Warranty | 1 Year |
Description
The IPC3614SR3-DPF18-F is a 4MP mini dome IP camera.
Features 1/3" CMOS sensor for clear images.
Fixed 2.8mm lens for broad view.
IR for low-light up to 30m.
IP67 rated for durability.
Built-in mic for audio.
Suitable for indoor and outdoor.
